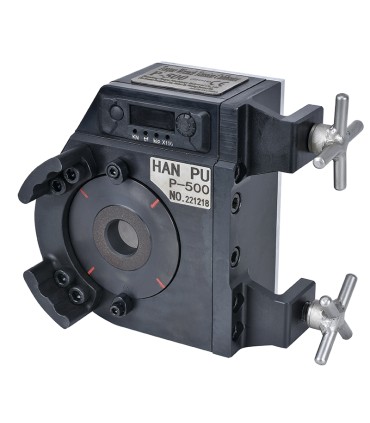

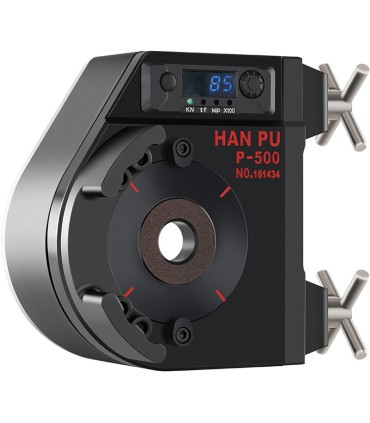

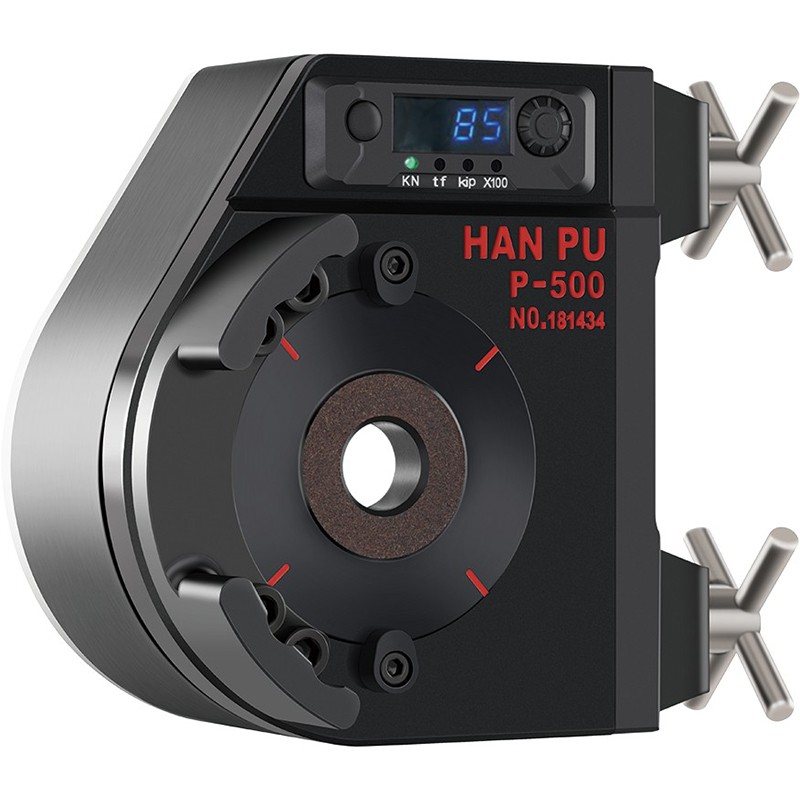

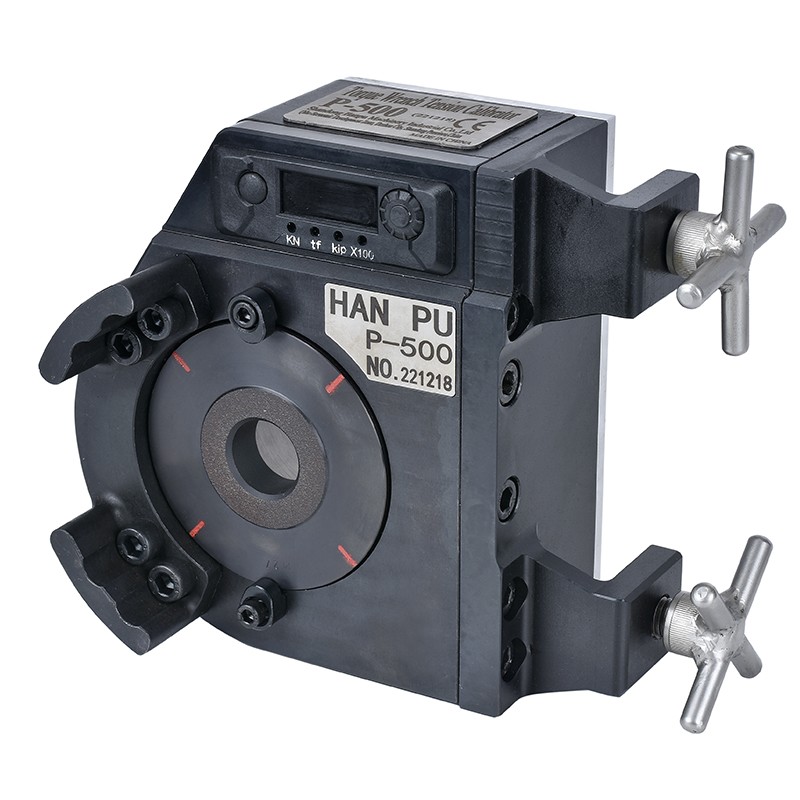

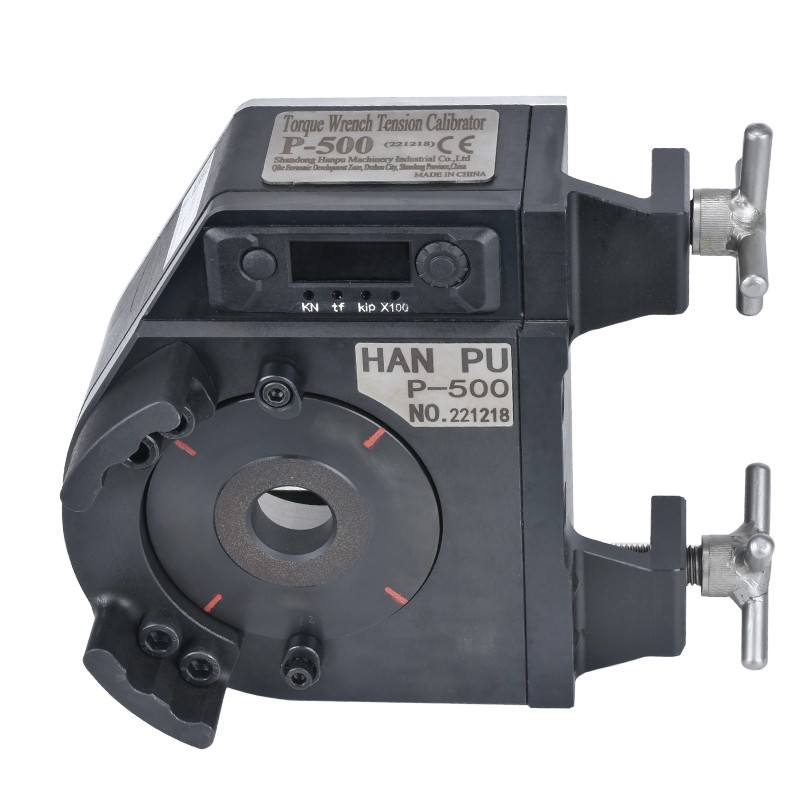

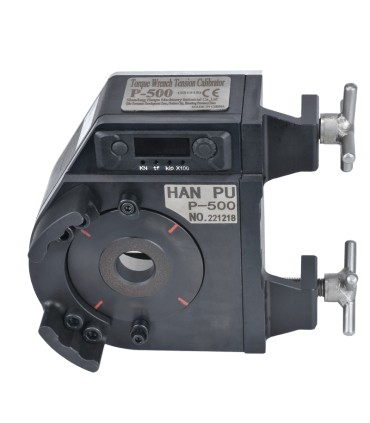

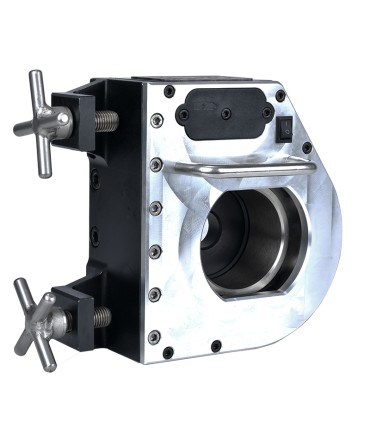

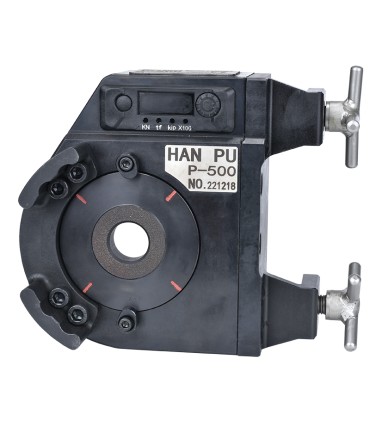

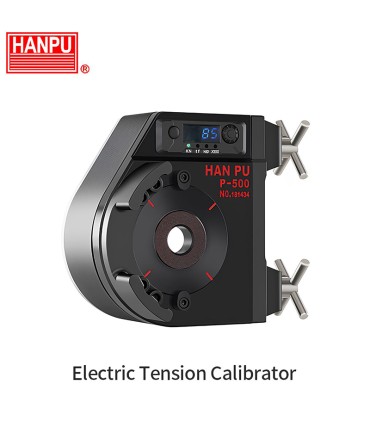

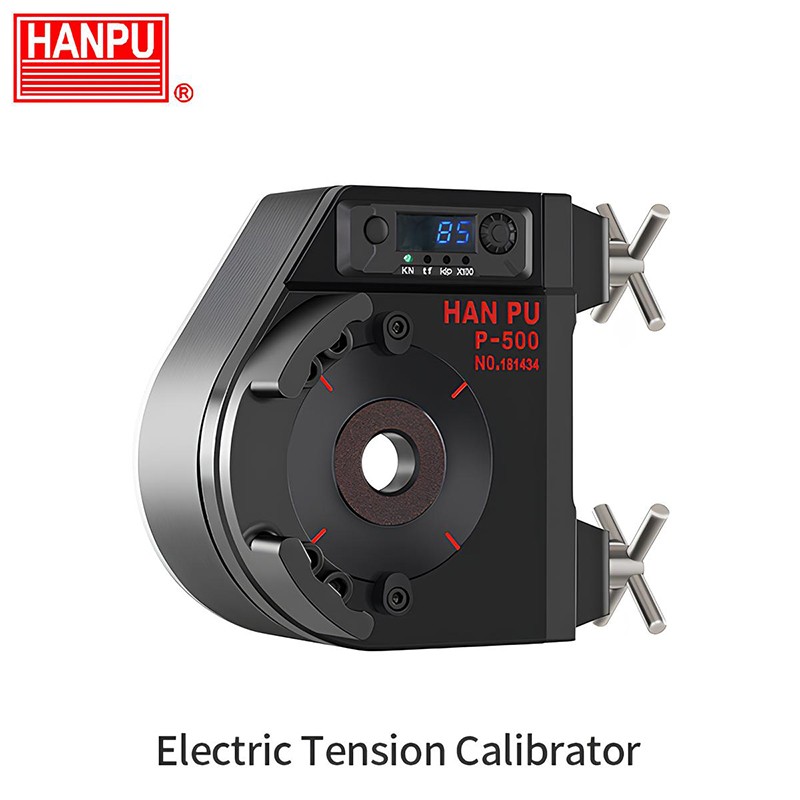

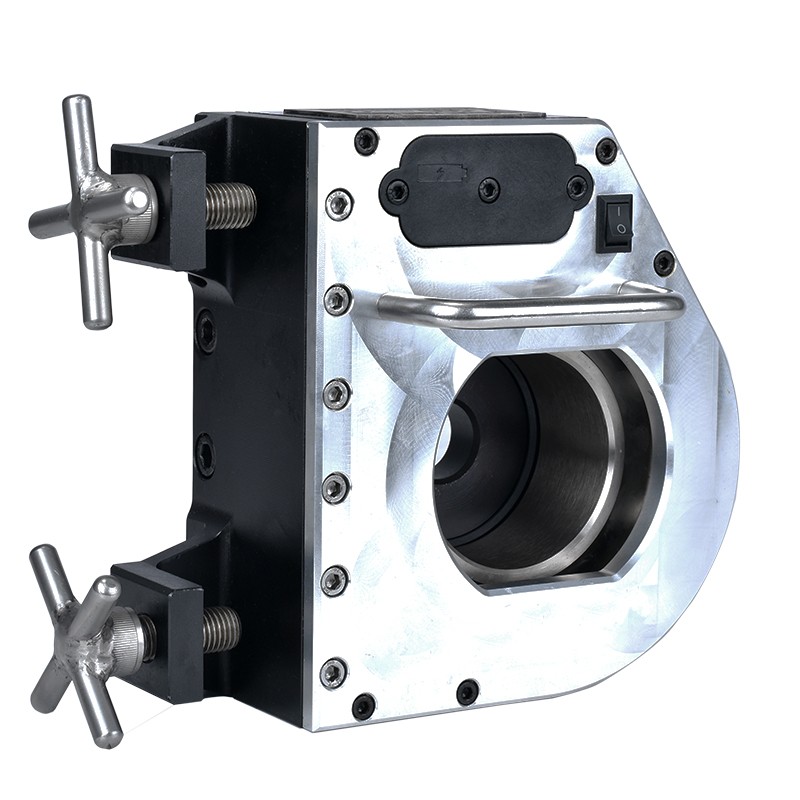

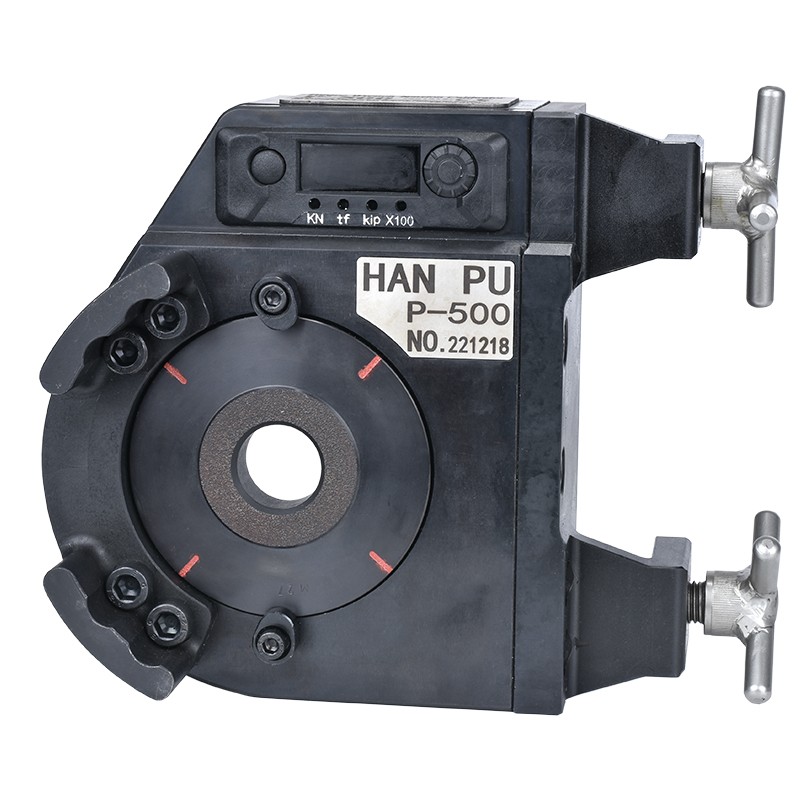

500 kN Bolt Tensioner Calibrator P500
- Model code: P500
- Capacity 500 kN
- Measuring accuracy ±2%
- Equipped with digital display
- Measuring device electronic load cell
- Suitable metric bolt sizes
- M16, M20, M22, M24, M27, M30
- Imperial sizes;
- 5/8″ 3/4″ 7/8″ 1″ 1-1/8″ 1-1/4″
- Suitable for portable use
- Supplied with a calibration certificate
Accurate Bolt Tensioning ±2%
Bolt tensioning is critical to the safety, reliability, and performance of any bolted joint. Our Bolt Tension Calibrator provides a fast, accurate, and reliable way to verify the actual tension applied to a bolt during installation. Designed for both field and workshop use, this essential tool ensures that bolts are properly tightened to specification—helping prevent failures due to over- or under-tightening.
| Model | Tension Range | Measuring Accurancy | Weight | Adaptable Bolt Dia | |||
| # | kN | ±% | kg | Inch | Metric | ||
| P500 | 0 - 500 | 2 | 11 | (5/8”) (3/4”) (7/8”) |
(1”) (1-1/8”) (1-1/4”) |
M16 M20 M22 |
M24 M27 M30 |
| P800 | 0 - 800 | 2 | 15 | (5/8”) (3/4”) (7/8”) (1”) |
(1-1/8”) (1-1/4”) (1-3/8”) (1-1/2”) |
M16 M20 M22 M24 |
M27 M30 M33 M36 |
What Is a Bolt Tension Calibrator?
A bolt tension calibrator is a device used to directly measure the clamping force (tension) in a fastener as torque is applied. By simulating real-world joint conditions, it allows technicians to confirm that the proper preload is achieved and that torque tools are delivering consistent results.
Key Benefits
- Accurate Measurement: Directly measures bolt tension (preload), not just torque.
- Tool Calibration: Perfect for calibrating impact wrenches, torque wrenches, and tensioning systems.
- Quality Assurance: Ensures every bolt is tightened to engineering specifications.
- User-Friendly: Simple operation and easy-to-read gauges make it suitable for all skill levels.
Applications
Bolt tension calibrators are widely used in:
- Steel construction
- Heavy equipment assembly
- Bridge and infrastructure projects
- Wind turbine and energy installations
- Aerospace and industrial maintenance
Why It Matters
Using a bolt tension calibrator significantly reduces the risk of bolt-related failures, ensures compliance with industry standards, and supports quality assurance efforts across various industries. Whether you're validating a torque method or developing a bolting procedure, accurate tension measurement is essential.
